單變量特征選擇?
一個顯示單變量特征選擇的例子。

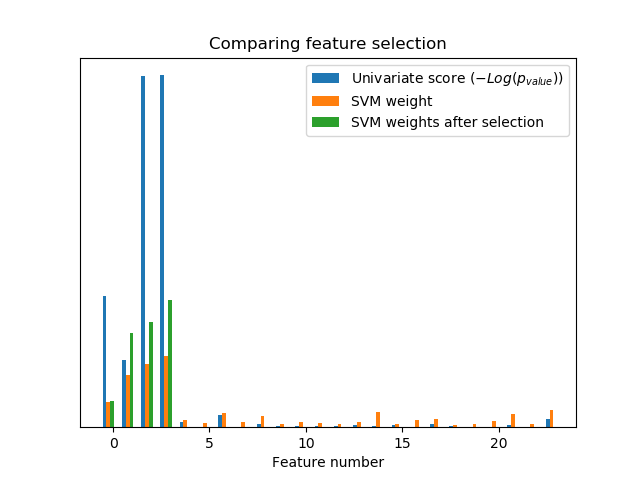

在iris數據中加入含噪(非信息)特征，并采用單變量特征選擇。對于每個特征，我們繪制了單變量特征選擇的p-值和支持向量機的相應權重。我們可以看到，單變量特征選擇選擇了信息豐富的特征，并且這些特征具有較大的支持向量機權重。
在所有的特征集合中，只有前四個特征是顯著的。我們可以看到，他們在單變量特征選擇中得分最高。支持向量機為這些特征之一分配了很大的權重，但也選擇了許多信息不豐富的特征。在支持向量機之前應用單變量特征選擇，可以增加對顯著特征的支持向量機的權重，從而改進分類。
Classification accuracy without selecting features: 0.789
Classification accuracy after univariate feature selection: 0.868
print(__doc__)
import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import MinMaxScaler
from sklearn.svm import LinearSVC
from sklearn.pipeline import make_pipeline
from sklearn.feature_selection import SelectKBest, f_classif
# #############################################################################
# Import some data to play with
# The iris dataset
X, y = load_iris(return_X_y=True)
# Some noisy data not correlated
E = np.random.RandomState(42).uniform(0, 0.1, size=(X.shape[0], 20))
# Add the noisy data to the informative features
X = np.hstack((X, E))
# Split dataset to select feature and evaluate the classifier
X_train, X_test, y_train, y_test = train_test_split(
X, y, stratify=y, random_state=0
)
plt.figure(1)
plt.clf()
X_indices = np.arange(X.shape[-1])
# #############################################################################
# Univariate feature selection with F-test for feature scoring
# We use the default selection function to select the four
# most significant features
selector = SelectKBest(f_classif, k=4)
selector.fit(X_train, y_train)
scores = -np.log10(selector.pvalues_)
scores /= scores.max()
plt.bar(X_indices - .45, scores, width=.2,
label=r'Univariate score ($-Log(p_{value})$)')
# #############################################################################
# Compare to the weights of an SVM
clf = make_pipeline(MinMaxScaler(), LinearSVC())
clf.fit(X_train, y_train)
print('Classification accuracy without selecting features: {:.3f}'
.format(clf.score(X_test, y_test)))
svm_weights = np.abs(clf[-1].coef_).sum(axis=0)
svm_weights /= svm_weights.sum()
plt.bar(X_indices - .25, svm_weights, width=.2, label='SVM weight')
clf_selected = make_pipeline(
SelectKBest(f_classif, k=4), MinMaxScaler(), LinearSVC()
)
clf_selected.fit(X_train, y_train)
print('Classification accuracy after univariate feature selection: {:.3f}'
.format(clf_selected.score(X_test, y_test)))
svm_weights_selected = np.abs(clf_selected[-1].coef_).sum(axis=0)
svm_weights_selected /= svm_weights_selected.sum()
plt.bar(X_indices[selector.get_support()] - .05, svm_weights_selected,
width=.2, label='SVM weights after selection')
plt.title("Comparing feature selection")
plt.xlabel('Feature number')
plt.yticks(())
plt.axis('tight')
plt.legend(loc='upper right')
plt.show()
腳本的總運行時間：(0分0.139秒)
